Description
Product Features
- 220-240Vac 50/60 Hz;
- 195lpw at system level;
- 110°、85°、55 ° three beam angles available;
- Available in non-dim、0-10V dimming、DALI；
- IP65、IK08;
- 5 years warranty;
- Surge protection: L-N: 4KV; L/N-GND: 6KV, residual
- voltage less than 2KVac;
- All-round protection: over temperature protection,
- over voltage protection, short circuit protection;
- 0-10V dimming series has an auxiliary 12V wire to
- connect with sensor module to turn on the light
- when presence is detected and saving more money;
- Output current adjustable via a DIP switch;
- Optional Tool-Free Driver Maintenance.
Applications

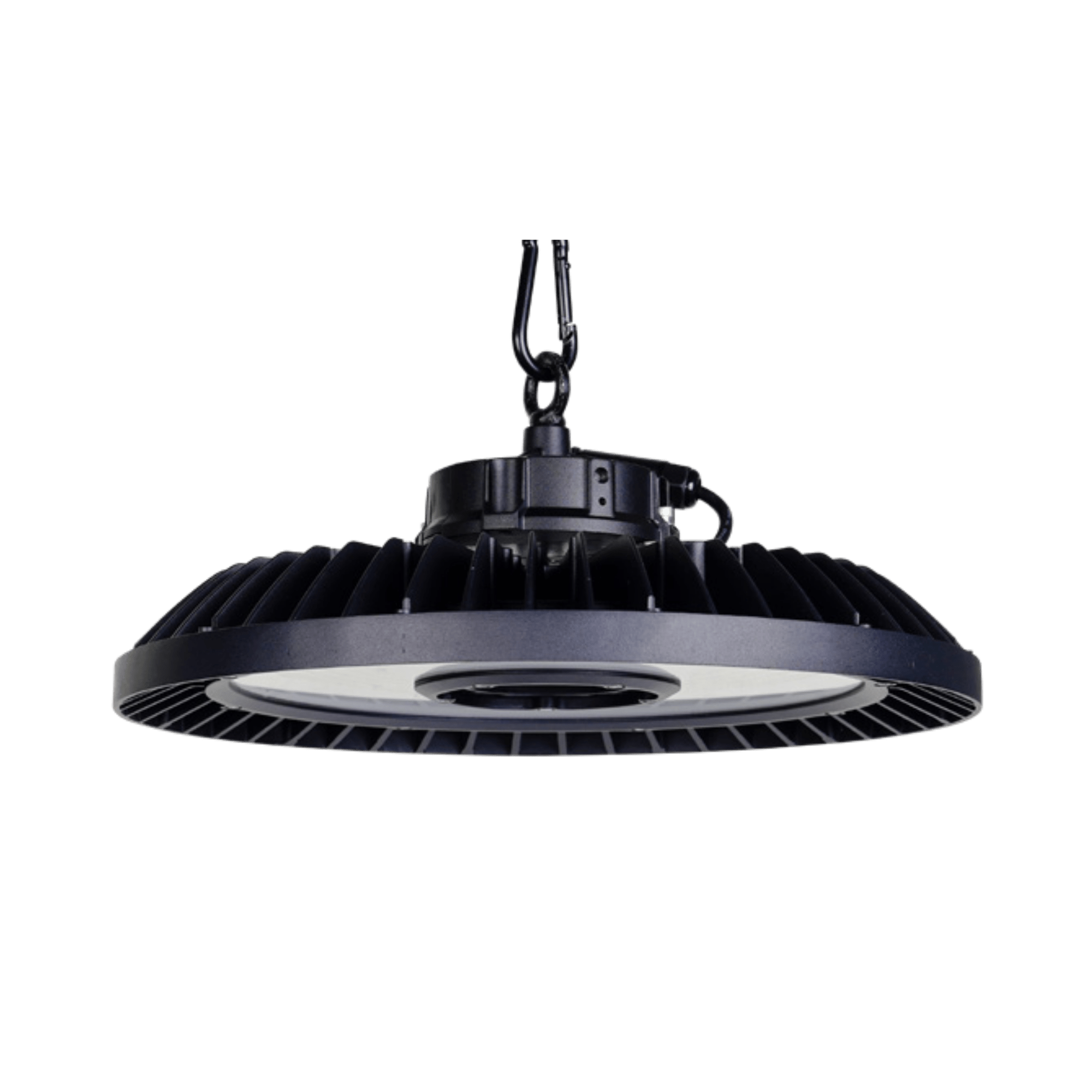

- Ultra slim, modern, light weight compact high bay disc a new generation high bay that offers high quality and
efficient lighting. roduct Description

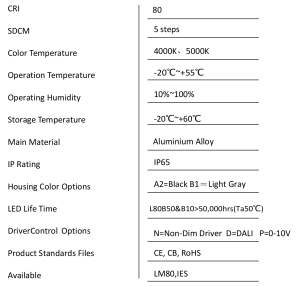

Basic Parameter( Ta=25℃)

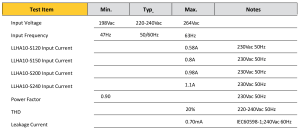

Electrical Parameters( Ta=25℃)
* Wattage Tolerance: ±10%
Light Distribution
* Beam Angle Tolerance: ±10%

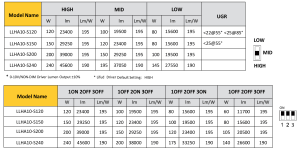

Lumen Output ( Test Condition 230Vac 50Hz Ta=25℃ )
* DALI Lumen Output ±10% * Lifud Driver Default Setting：1ON 2OFF 3OFF
Max. No. of PSUs on 16A circu it breaker ( Test Con dition 230Vac 50Hz Ta=25 ℃)

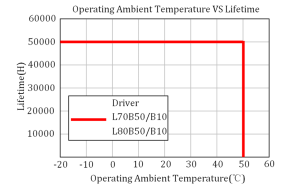

Operating Ambient Temperature VS Lifetime

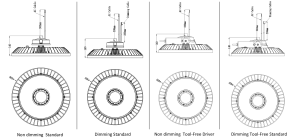

Product Dimensions
Optional Tool Free Driver Replacement
